| import * as THREE from "three";
import { OrbitControls } from "three/examples/jsm/controls/OrbitControls.js";
let scene = new THREE.Scene();
let camera = new THREE.PerspectiveCamera(
75,
window.innerWidth / window.innerHeight,
0.1,
1000
);
camera.position.set(0, 9, 57)
let renderer = new THREE.WebGLRenderer({ antialias: true });
renderer.setSize(window.innerWidth, window.innerHeight);
document.body.appendChild(renderer.domElement);
new THREE.TextureLoader().load('/textures/day.jpg', (loaded) => {
loaded.mapping = THREE.EquirectangularReflectionMapping
scene.background = loaded
scene.environment = loaded
});
let controls = new OrbitControls(camera, renderer.domElement);
const range = 100;

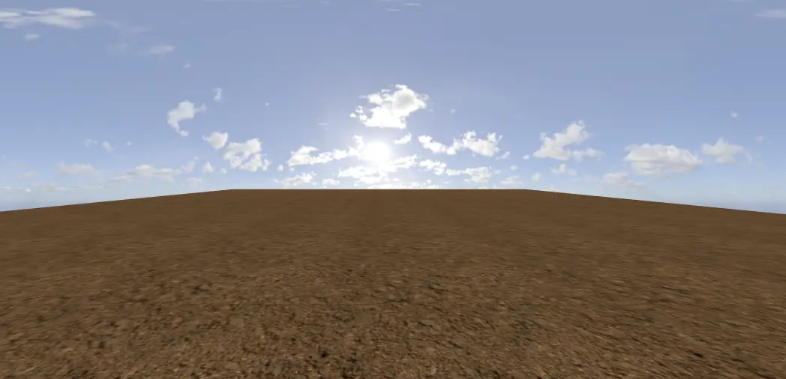

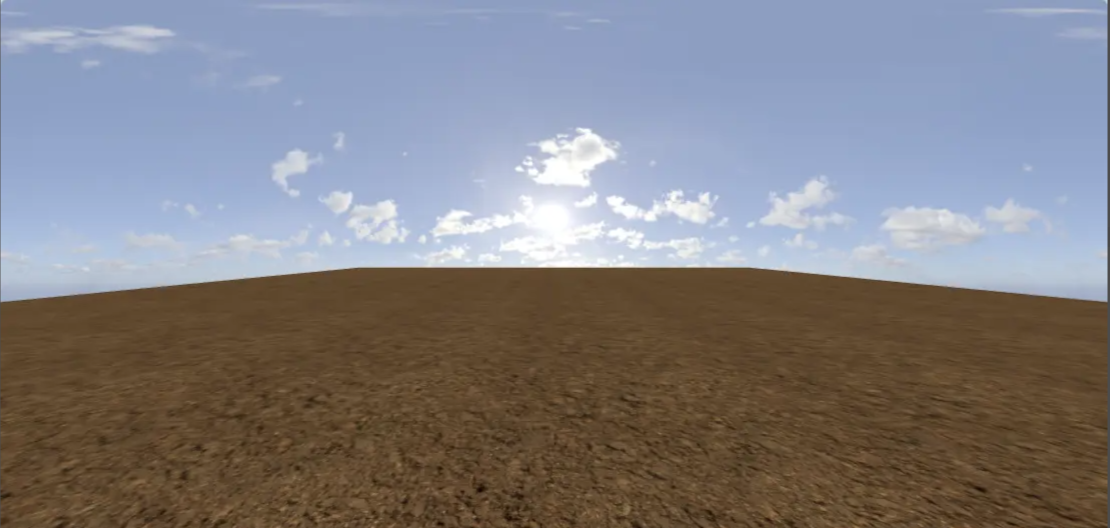

let planeGeometry = new THREE.PlaneGeometry(range, range, 1, 1);
const textureLoader = new THREE.TextureLoader();
textureLoader.load('/textures/ground.jpg', (texture) => {
texture.wrapS = texture.wrapT = THREE.RepeatWrapping;
texture.repeat.set(10, 15);
let material = new THREE.MeshBasicMaterial({
side: THREE.DoubleSide,
map: texture,
color: 0xb79f76
});
let mesh = new THREE.Mesh(planeGeometry, material);
mesh.rotation.x = -Math.PI / 2;
scene.add(mesh);
})
const grassMaterial = new THREE.ShaderMaterial({
uniforms: {
uTime: { value: 0 },
uLightColor: { value: new THREE.Color(0xd9d9d9) },
uAmbientLight: { value: new THREE.Color(0xadadad) },
uColor: { value: new THREE.Color(0x43c70d) },
uLightDirection: { value: new THREE.Vector3(-1.0, -1.0, 0).normalize() },
uWindDirection: { value: new THREE.Vector2(0.8,0.4).normalize() }
},
side: THREE.DoubleSide,
vertexShader: `
uniform float uTime;//时间变量，用于驱动动画效果
uniform vec2 uWindDirection;//风方向
varying vec3 vPosition;//传递到片元着色器中的顶点坐标
varying vec3 vNormal;//传递到片元着色器中的法线信息
void main() {
vPosition = position;
vNormal = normalize(normalMatrix * normal);
if (position.y > 0.1) {
//结合空间位置与风向计算当前顶点的空间因子
//简而言之,为了让草的摆动更加自然,将摆动幅度计算与其空间位置联系起来
//让不同位置的草在同一时刻有不同的摆动幅度
float factor = dot(vPosition.xz, uWindDirection) * 0.06;
//基础摆动幅度,结合空间因子传入正弦函数形成周期性差异化运动
float swayAmplitude = sin(uTime / 500.0 + factor);
//摆动幅度随高度增加而增强,为了形成更拟真的效果这里使用平方增长而非线性增长
float swayStrength = swayAmplitude * vPosition.y * vPosition.y * 0.07;
//根据风向将摆动应用到 x 和 z 方向
vPosition.x += swayStrength * uWindDirection.x;
vPosition.z += swayStrength * uWindDirection.y;
}
gl_Position = projectionMatrix * modelViewMatrix * vec4(vPosition, 1.0);
}`,
fragmentShader: `
varying vec3 vPosition;// 从顶点着色器传入的顶点位置
varying vec3 vNormal;// 从顶点着色器传入的顶点法线
uniform vec3 uLightColor;// 平行光源颜色
uniform vec3 uAmbientLight;// 环境光颜色
uniform vec3 uColor;// 基础颜色（用于草的颜色）
uniform vec3 uLightDirection;// 光源方向
void main() {
//根据顶点高度(y 值)进行颜色插值，模拟草由下到上的渐变效果
vec3 color = mix(uColor * 0.5, uColor, vPosition.y);
//计算光照方向与法线之间的夹角余弦值（漫反射系数）
//使用 max 避免负值
float nDotL = max(dot(uLightDirection, vNormal), 0.0);
//漫反射光照=光源颜色 * 材质颜色 * 漫反射系数
vec3 diffuse = uLightColor * color * nDotL;
//环境光照=环境光颜色 * 材质颜色
vec3 ambient = uAmbientLight * color;
//最终输出颜色为漫反射 + 环境光
gl_FragColor = vec4(diffuse + ambient, 1.0);
}`,
})
let vertexes = [];
let indices = [];
let getRandom = function (min, max) {
return Math.random() * (max - min) + min;
}

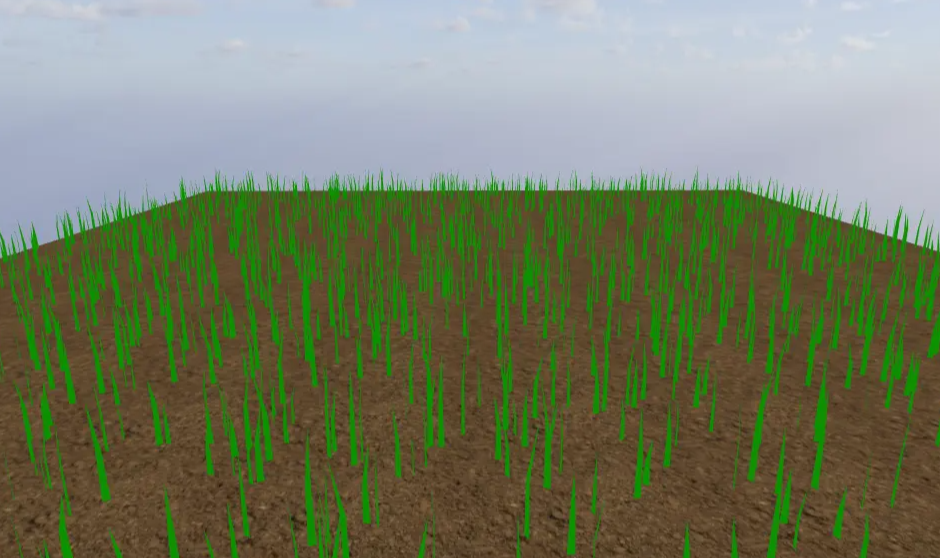

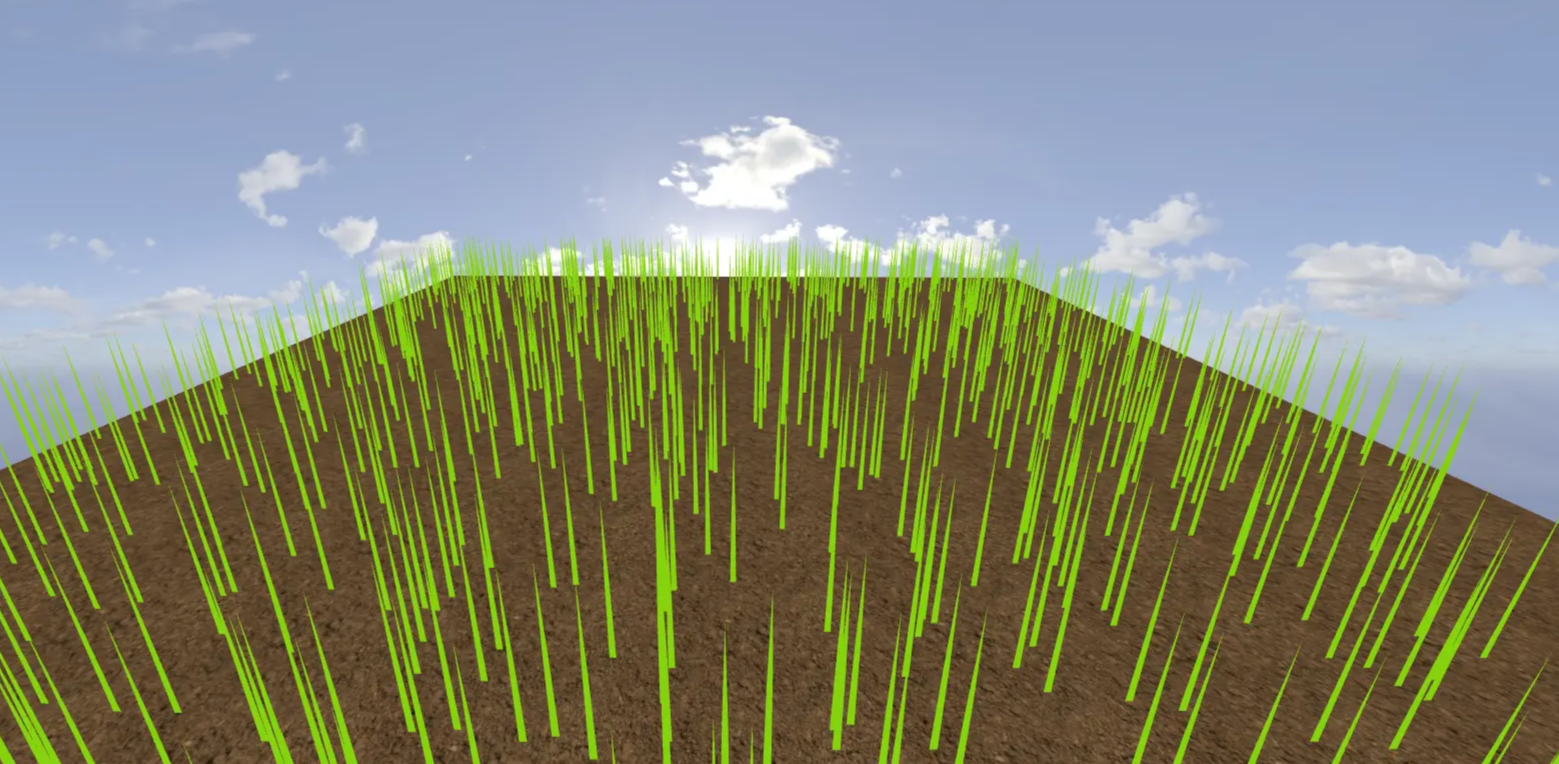

const count = 20000;
for (let i = 0; i < count; i++) {
let x = getRandom(-range / 2, range / 2);
let z = getRandom(-range / 2, range / 2);

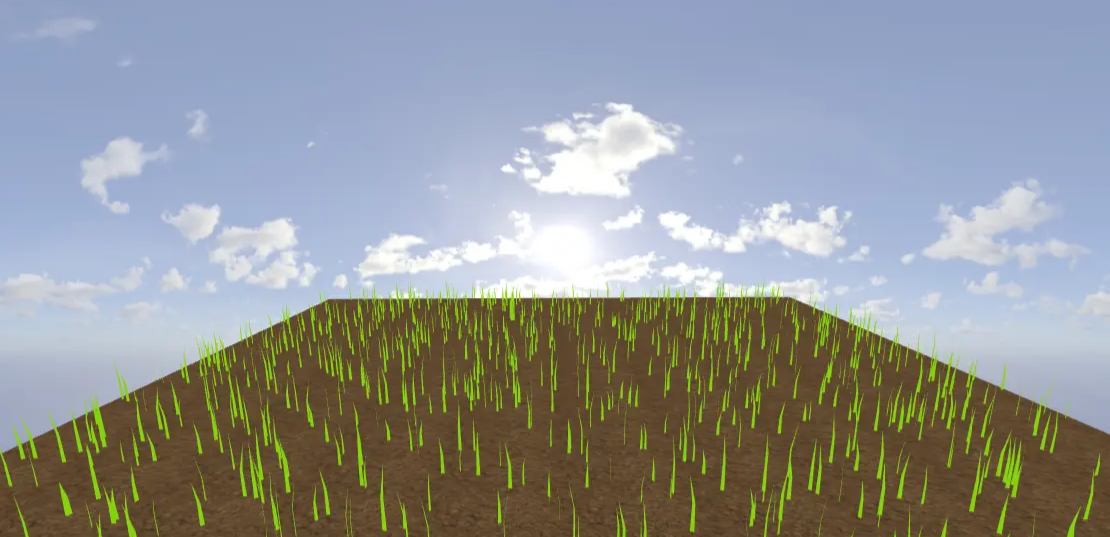

const angleBottom = getRandom(0, Math.PI * 2);
const angleTop = getRandom(-0.2, 0.2);
const height = getRandom(2, 5);
const widthBottom = 0.3;
const widthTop = 0.2;

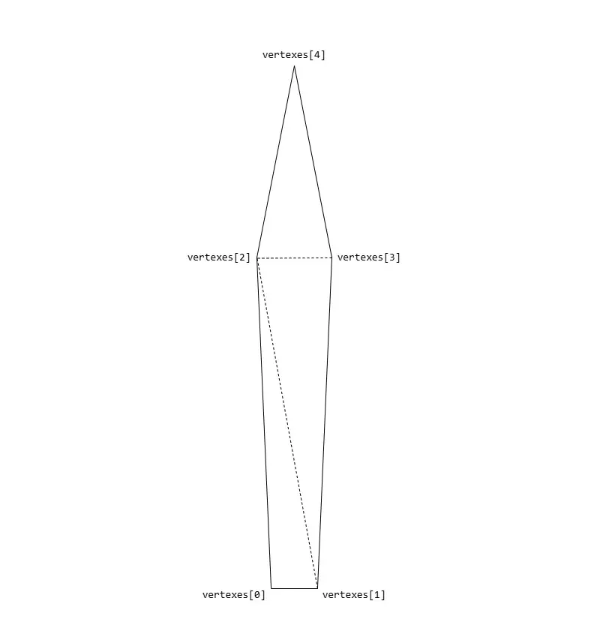

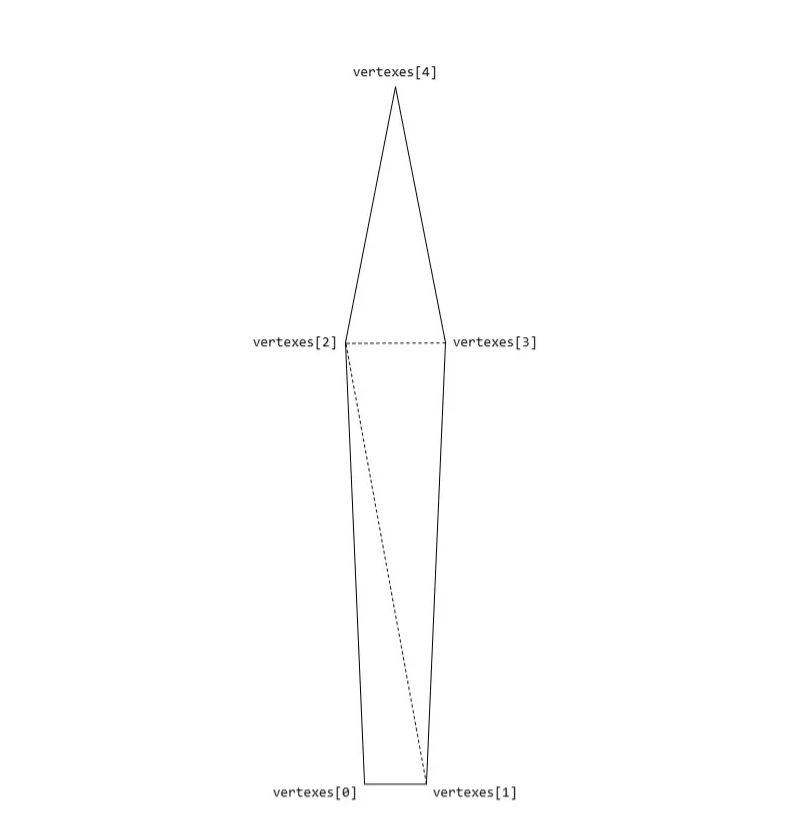

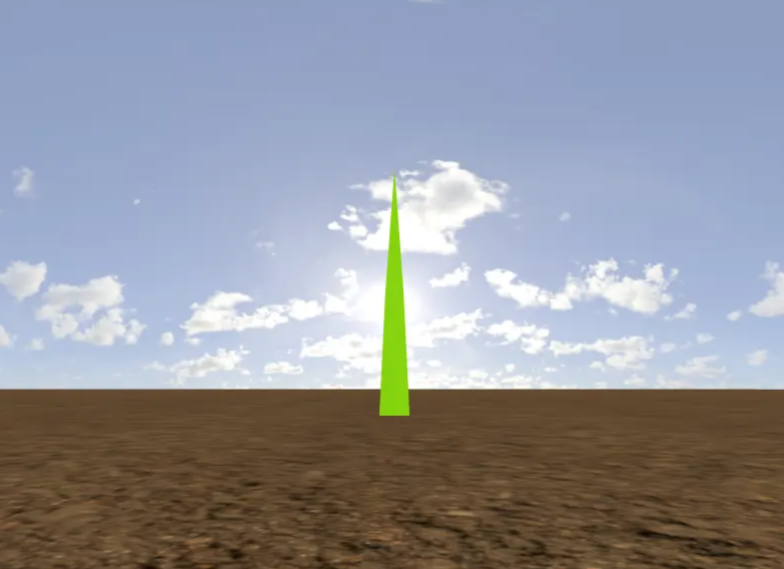

let tempVertexes = [
[x - widthBottom / 2, 0, z],
[x + widthBottom / 2, 0, z],
[x - widthTop / 2, height / 2, z],
[x + widthTop / 2, height / 2, z],
[x, height, z],
];
let translateToOrigin = new THREE.Matrix4().makeTranslation(-x, -height / 2, -z);
let translateBack = new THREE.Matrix4().makeTranslation(x, height / 2, z);
let rotationY = new THREE.Matrix4().makeRotationY(angleBottom);
tempVertexes.map((vertex, index) => {
vertex = new THREE.Vector3(...vertex);
vertex.applyMatrix4(translateToOrigin);
vertex.applyMatrix4(rotationY);
if (index == 4) {
vertex.applyMatrix4(new THREE.Matrix4().makeRotationZ(angleTop));
}
vertex.applyMatrix4(translateBack);
vertexes.push(...vertex.toArray());
})
let startIndex = i * 5;
indices.push(
startIndex, startIndex + 1, startIndex + 2,
startIndex + 1, startIndex + 3, startIndex + 2,
startIndex + 2, startIndex + 3, startIndex + 4
);
}
let grassGeometry = new THREE.BufferGeometry();
grassGeometry.setAttribute(
'position',
new THREE.BufferAttribute(new Float32Array(vertexes.flat()), 3)
);
grassGeometry.setIndex(indices);
grassGeometry.computeVertexNormals();
let grass = new THREE.Mesh(grassGeometry, grassMaterial);
scene.add(grass);

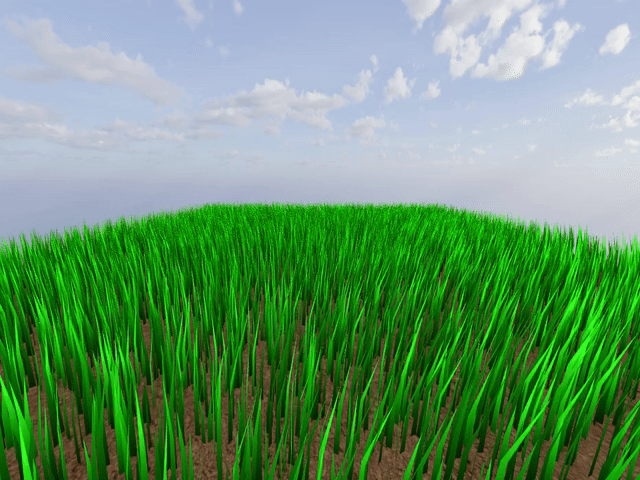

function animate(time) {
requestAnimationFrame(animate);
controls.update();
renderer.render(scene, camera);
grassMaterial.uniforms.uTime.value = time
}
animate();
|
